Mixer and Mixing System

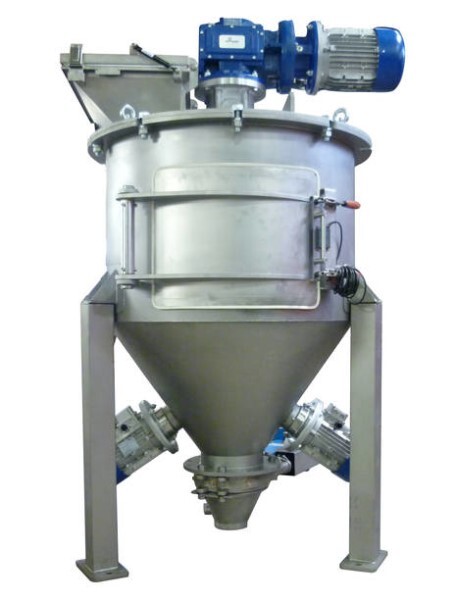

GIMAT Vertical mixers

GIMAT vertical mixers up to 1000 lt useful capacity, are characterized by a conical body with a vertical axis mixing blade.

The rotation of the helicoid creates an upward flow of product on the peripheral portion of the mixing chamber and descending in the center.
The rotation of the mixing shaft is carried out by means of a geared motor unit with single bearing support on the top.

These vertical blenders are particularly targeted at the food industry and pharmaceutical industry, as they ensure good mixing and the absence of residues during emptying.

In addition, the particular shape of the conical mixer body, allows a high quality of interior finish and ease of cleaning. They are also suitable for being placed under vacuum should they be loaded pneumatically.

As in the case of ribbon blenders, the mixing also occurs in a gentle and homogeneous manner without overheating the mixed product.

The low peripheral speed makes these mixers particularly suitable for applications in hazardous areas in accordance with ATEX regulations.
