H8C & HM-8-901 mount

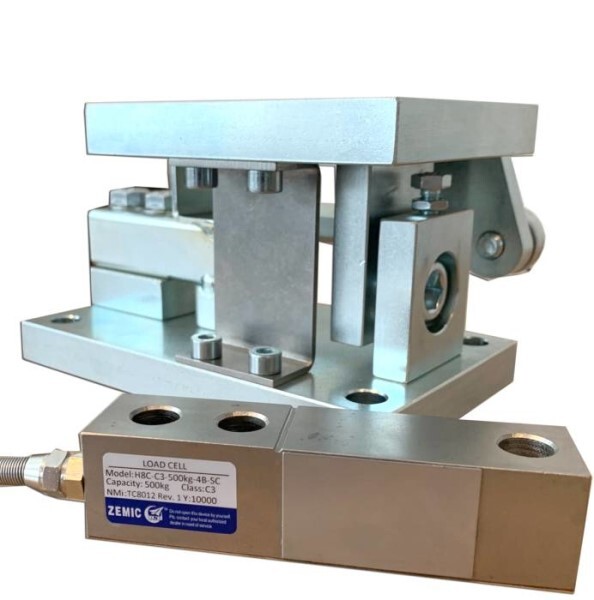

H8C & HM-8-901 mount – Alloy steel shear beam load cell and smart mount for silo and tank weighing applications

Loadcell characteristics:

Nickel plated alloy steel IP67 shear beam load cell.
100kg and 250kg are bending beam load cells.
Suitable platform weighing, hospital bed weighing, etc.
High accuracy.
High reliability.
Current calibrated (sc-option).
OIML approved
ATEX certification available (option)

Time and cost saving smart mount HM-8-901:

Alloy steel mount.
Save on installation time because product is pre-mounted in packaging.
Innovative alignment feature.
Integrated lift-off protection.
Quick mounting.
Save time because of easy load cell access for installation and replacement.
Included: loadcell dummy to be used during welding activities, transport plate, and earthing cable.
Optional available: stay rod for horizontal side forces.

More detail information can be found here: https://www.zemiceurope.com/en/hm-8-901.html
