Automatic powder weighing

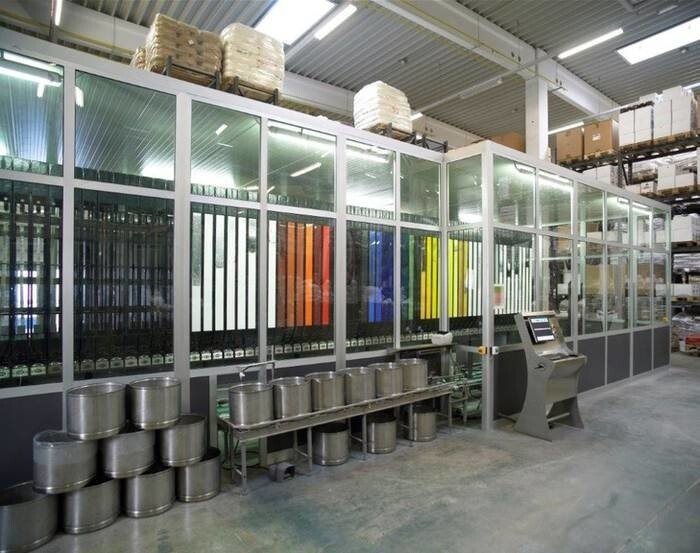

Supercolor is a fully automatic weighing system, allowing safe and clean powder recipes preparation. The system consists of a number of independent storage silos, installed in line on a modular structure. A weighing trolley incorporating the electronic scale is automatically transported to the correct silo position. Each module can accommodate up to 1 O standard silos 150 L capa city or 5 double silos 300 L capacity. The silos are loaded by means of a vacuum system. The bottom section of each silo is equipped with an efficient combined screw/vibration dispensing device [Lawer patented] which allows to dispense rapidly and accurately the powder. The bucket loading / unloading takes place automatically and every bucket is identified by the IO-TAG system. At the end of each weighing cycle the data of the recipe are printed in an identification label. The system is protected by a full enclosure box, designed to connect to an external conditioning system, which ensures complete isolation of the plant granting the ideal working conditions even in harsh environments [high humidity rate, abrupt thermal changes, air draughts, dusty ambient] and grants a safe use in case of toxic powders. An efficient suction / filtering device guarantees the maximum safety of use and a clean working environment. The system operates by means of a dedicateci Lawer Software.

/ full automation of powder weighing

/ elimination of weighing errors

/ repeatability of the recipes

/ traceability of the operations

/ fast and accurate weighing

/ elimination of contaminations and pollution

/ safe and healthy working environment with no risk for the operator

/ clean working environment

/ possible integration with dissolving-dispensing systems

/ possible integration with external software systems
