ASC compressed air Venturi loaders, model with or without glass Pyrex neckpiece.
ASM self-contained vacuum loaders, models with integrated vacuum blower on different material receiver Volume: 2, 10, 15 litres.
AST+CT three-phase stand-alone loaders.AST floor standing vacuum units, to be combined with different CT material receivers, to be installed above machine. Blowers from 0.85 kW to 11 kW. Receivers volume from 2 litres to 200 litres as standard. FST floor standing filters where required.

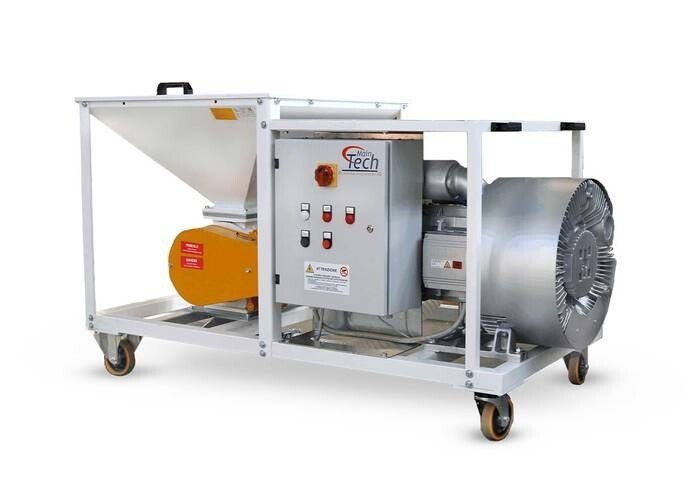

CS series silo feeders. Silos loading stations under pressure, with a capacity of 1000-10.000 kg/h in standard configurations with:
- Support frame in painted steel, complete with wheels for easy handling
- Material collection hopper with a capacity of 400 liters complete with bag-rest grid and closing lid. Hopper in painted steel or stainless steel
- Star valve for loading granular material complete with Venturi injector
- Side channel compressors with power between 5 kW÷22 kW
- Electrical system complete with power and control.
- Flexible hose DN90-DN100 5 m in length with quick coupling for connection to the silo inlet hose
- Compressor sound-absorbing cabin
- Dedicated solutions for specific applications
Special loading systems dedicated to flakes or powder are available, as well as gravimetric loaders with or without inner mixer for batches preparation, and pressure silo loaders.
